实现思路

要想实现类似SSH终端功能并非易事，主要难点在于页面与连接的目标是实时交互的。说起实时交互，相信大家都有接触过，例如qq、微信、在线客服这些都是，像一些网页版的在线聊天系统常用的实现方案就是websocket。

WebSocket协议与HTTP的主要区别：HTTP是无状态协议，由客户端发起请求，客户端与服务器“一问一答”，因此服务器端无法主动向客户端发送信息。而WebSocket是基于TCP长连接的协议，客户端与服务器建立连接后，服务器端随时能向客户端发送信息。

WebSocket协议的主要价值在于其与HTTP的差异（服务器端与客户端能够保持实时的双向通信），使其在某些应用情景下比HTTP更能满足技术需求。

Django Web框架实现WebSocket主要有两种方式：channels和dwebsocket。

Channels是针对Django项目的一个增强框架，使得Django不仅支持HTTP协议，还能支持WebSocket协议。

为了更好的模拟shell终端，还需要一个前端库xterm.js ，这是一个比较成熟的shell终端模拟库，目前大部分公司实现的webssh都是用的这个。

官网：https://xtermjs.org/

所需技术

  • channels: 是Django的扩展模块，用于处理WebSocket。
  • xterm.js：前端模拟 shell 终端的一个库
  • paramiko：python下对 ssh2 封装的一个库
  • channels_redis: 使用redis作为存储，维护不同消息传递。

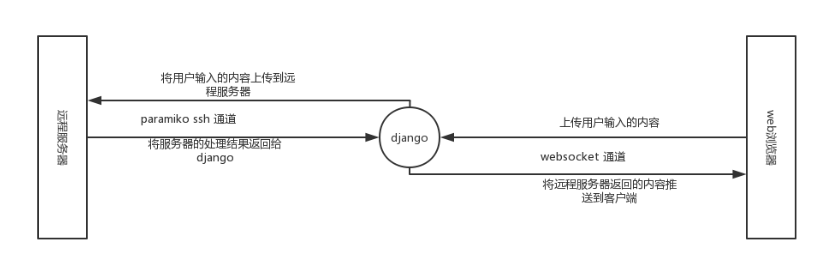

具体实现

  1. xterm.js 在浏览器端模拟 shell 终端, 监听用户输入通过 websocket 将用户输入的内容上传到 django
  2. django 接受到用户上传的内容, 将用户在前端页面输入的内容通过 paramiko 建立的 ssh 通道上传到远程服务器执行
  3. paramiko 将远程服务器的处理结果返回给 django
  4. django 将 paramiko 返回的结果通过 websocket 返回给用户
  5. xterm.js 接收 django 返回的数据并将其写入前端页面

前端（vue)

安装

npm install xterm
npm install xterm-addon-fit

前端页面：devops_web/src/views/server/TerminalCreate.vue

<template>
    <el-dialog
          :model-value="visible"
          title="终端"
          @close="dialogClose"
          width="30%"
    >

     <el-form :model="form" ref="formRef" :rules="formRules" label-width="100px">
      <el-form-item label="SSH IP" prop="ssh_ip"> <!-- pod 名称输入框 -->
        <el-input v-model="form.ssh_ip" />
      </el-form-item>
      <el-form-item label="SSH 端口" prop="ssh_port"> <!-- pod 名称输入框 -->
        <el-input v-model="form.ssh_port" />
      </el-form-item>
      <el-form-item label="用户名" prop="ssh_username"> <!-- namespace 输入框 -->
        <el-input v-model="form.ssh_username" />
      </el-form-item>
      <el-form-item label="密码" prop="ssh_password"> <!-- pod 名称输入框 -->
        <el-input v-model="form.ssh_password"  show-password/>
      </el-form-item>
<!--        <div ref="xterm" /> &lt;!&ndash; 终端视图容器 &ndash;&gt;-->
      </el-form>

      <template #footer>
        <span class="dialog-footer">
          <el-button @click="dialogClose">取消</el-button>
          <el-button type="primary" @click="onSubmit">连接</el-button>
        </span>
      </template>

  </el-dialog>

  <el-dialog
          :model-value="xtermvisible"
          width="60%"
          title="SSH终端"
          @close="xtermdialogClose"
          style="min-width: 1000px;"
          >
        <div class="host-info">
          <el-tag size="large" type="primary">用户名：{{xtermform.ssh_username}}</el-tag>
<!--          <el-tag size="large" type="success">主机名：{{xtermform.hostname}}</el-tag>-->
          <el-tag size="large" type="warning">IP地址：{{xtermform.ssh_ip}}</el-tag>
          <el-tag size="large" type="success">端口：{{xtermform.ssh_port}}</el-tag>
        </div>
        <div ref="xterm" class="terminal" style="height: 500px;margin-top: 20px"/>
     </el-dialog>
</template>

<script>
    import 'xterm/css/xterm.css'
    import { Terminal } from 'xterm'
    import { FitAddon } from 'xterm-addon-fit'  // xterm窗口自适应

    export default {
        name: "Terminal",
        props: {
            visible: Boolean,
            row: '',  // 当前行内容
        },
          data() {
            return {
              term: '',  // term实例
              ws: '', // ws连接
              form: {
                ssh_username: '',
                ssh_ip: '',
                ssh_port: '',
              },
              xtermform: {
                ssh_username: '',
                ssh_ip: '',
                ssh_port: '',
              },
              xtermvisible: false,
              formRules: {
                  ssh_username: [
                      {required: true, message: '请输入用户名', trigger: 'blur'},
                  ],
                  ssh_password: [
                      {required: true, message: '请输入密码', trigger: 'blur'},
                  ],
                  ssh_ip: [
                      {required: true, message: '请输入SSH IP地址', trigger: 'blur'},
                  ],
                  ssh_port: [
                      {required: true, message: '请输入SSH端口', trigger: 'blur'},
                  ],

                },
            }
          },
        methods: {
          onRest(){
            this.$refs.formRef.resetFields();
          },
           dialogClose() {
                this.$emit('update:visible', false);  // 当对话框关闭，通过父组件更新为false
                this.onRest(); //重置表单
                // window.location.reload();
              },
            onSubmit() {
               this.$refs.formRef.validate((valid) => {
                 if (valid) {
                   this.xtermform.ssh_username = this.form.ssh_username;
                   this.xtermform.ssh_ip = this.form.ssh_ip;
                   this.xtermform.ssh_port = this.form.ssh_port;
                   this.$emit('update:visible', false);
                   this.xtermvisible = true;
                   this.term = new Terminal({
                     fontSize: 18,
                     convertEol: true, // 启用时，光标将设置为下一行的开头
                     rendererType: 'canvas', // 渲染类型
                     cursorBlink: true, // 光标闪烁
                     cursorStyle: 'bar', // 光标样式 underline
                     theme: {
                       background: '#060101', // 背景色
                       cursor: 'help' // 设置光标
                     }
                   })
                   const fitPlugin = new FitAddon()
                   fitPlugin.activate(this.term)
                   // this.term.loadAddon(fitPlugin)

                   // 建立ws连接
                   this.ws = new WebSocket(`ws://${process.env.VUE_APP_API_HOST}:${process.env.VUE_APP_API_PORT}/server/terminal/${this.form.ssh_ip}/${this.form.ssh_port}/${this.form.ssh_username}/${this.form.ssh_password}/`)

                   // 建立ws连接成功后回调
                   this.ws.onopen = () => {
                     // 将term挂载到标签上
                     this.term.open(this.$refs.xterm)
                     this.term.focus()
                     fitPlugin.fit()
                   }

                   // 获取后端传回的数据
                   this.ws.onmessage = (res) => {
                     const reader = new window.FileReader()
                     reader.onload = () => this.term.write(reader.result)
                     reader.readAsText(res.data, 'utf-8')
                   }

                   // 用户输入发送到后端
                   this.term.onData(data => this.ws.send(JSON.stringify({data})))

                   // 动态设置终端窗口大小
                   this.term.onResize(({cols, rows}) => {
                     this.ws.send(JSON.stringify({resize: [cols, rows]}))
                   })
                   window.onresize = () => fitPlugin.fit()

                   // ws关闭连接
                   this.ws.onclose = (e) => {
                     console.log('Websocket关闭：' + e)
                     // this.cleanupSocket();
                   }
                 }else {
                   this.$message.error('格式错误！')
                 }
               })
            },
           //清理websocket和终端资源
           cleanupSocket(){
              if (this.ws){
                this.ws.close();
              }
              if (this.term){
                this.term.dispose();
              }
            },
           xtermdialogClose() {
              this.cleanupSocket();
              this.xtermvisible = false;  // 父组件必须使用v-model
              window.location.reload()
            },
        }
    }
</script>

<style scoped>

</style>

服务端（Django Channels)

安装

pip install channels==2.4.0
pip install channels_redis
pip install paramiko

在settings.py文件中注册channels

INSTALLED_APPS = [
    'channels',
]
ASGI_APPLICATION = 'devops.routing.application'

devops_api/devops_api/asgi.py

"""
ASGI config for devops_api project.

It exposes the ASGI callable as a module-level variable named ``application``.

For more information on this files, see
https://docs.djangoproject.com/en/3.2/howto/deployment/asgi/
"""

import os

from django.core.asgi import get_asgi_application

os.environ.setdefault('DJANGO_SETTINGS_MODULE', 'devops_api.settings')

application = get_asgi_application()

配置路由

devops_api/devops_api/routing.py

from channels.auth import AuthMiddlewareStack
from channels.routing import ProtocolTypeRouter, URLRouter

from django.urls import re_path
from .consumers import SSHConsumer

application = ProtocolTypeRouter({
    'websocket': AuthMiddlewareStack(
        URLRouter([
            re_path(r'^server/terminal/(?P<ssh_ip>.*)/(?P<ssh_port>\d+)/(?P<credential_id>\d+)/', SSHConsumer),
            re_path(r'^server/terminal/(?P<ssh_ip>.*)/(?P<ssh_port>\d+)/(?P<ssh_username>.*)/(?P<ssh_password>.*)/', SSHConsumer),
        ])
    ),
})

# /server/terminal/192.168.1.10/22/2

websocket服务端消费

devops_api/devops_api/consumers.py

from channels.generic.websocket import WebsocketConsumer
import threading
import paramiko
import json
from io import StringIO
from system_config.models import Credential

class SSHConsumer(WebsocketConsumer):
    def __init__(self, *args, **kwargs):
        super().__init__(*args, **kwargs)
        self.ssh_ip = None
        self.ssh_port = None
        self.credential_id = None
        self.ssh_channel = None
        self.ssh_username = None
        self.ssh_password = None

    # 处理客户端与WebSocket建立连接
    def connect(self):
        self.ssh_ip = self.scope['url_route']['kwargs']['ssh_ip']
        self.ssh_port = self.scope['url_route']['kwargs']['ssh_port']
        try:
            self.credential_id = self.scope['url_route']['kwargs']['credential_id']
        except Exception as e:
            self.ssh_username = self.scope['url_route']['kwargs']['ssh_username']
            self.ssh_password = self.scope['url_route']['kwargs']['ssh_password']
        self.accept()  # 接受与客户端建立WebSocket连接
        self.ssh_stream() # 创建SSH连接和交互式Shell会话通道

    def ssh_stream(self):
        self.send(bytes_data='建立SSH连接中...\r\n'.encode('utf-8')) # 字符串转字节（必须）
        try:
            # 创建SSH连接
            ssh = paramiko.SSHClient()
            ssh.set_missing_host_key_policy(paramiko.AutoAddPolicy())
            try:
                credential = Credential.objects.get(id=self.credential_id)
                username = credential.username
                if credential.auth_mode == 1:
                    password = credential.password
                    ssh.connect(self.ssh_ip, self.ssh_port, username, password=password, timeout=5)
                else:
                    cache = StringIO(credential.private_key)
                    private_key = paramiko.RSAKey.from_private_key(cache)
                    ssh.connect(self.ssh_ip, self.ssh_port, username, pkey=private_key, timeout=5)
            except Exception as e:
                ssh.connect(self.ssh_ip, self.ssh_port, self.ssh_username, self.ssh_password, timeout=5)
            # 创建SSH通道
            self.ssh_channel = ssh.invoke_shell(term='xterm') # 创建交互式Shell会话，并指定伪终端的终端类型为xterm
            self.ssh_channel.transport.set_keepalive(30)
            # 创建线程对象并启动（循环读取数据发送给前端）
            thread = threading.Thread(target=self._loop_read)
            thread.start()
        except Exception as e:
            if "timed out" in str(e):
                # 通过WebSocket向客户端发送消息
                self.send(bytes_data=f'建立SSH连接超时！\r\n'.encode('utf-8'))
                self.close()
            else:
                self.send(bytes_data=f'建立SSH连接失败！错误: {e}\r\n'.encode('utf-8'))
                self.close()
            return

    # 循环读取SSH通道返回的数据并发送给前端
    def _loop_read(self):
        while True:
            data = self.ssh_channel.recv(32 * 1024)
            if not data:
                break
            self.send(bytes_data=data)

    # 处理从客户端接收到的 WebSocket 消息
    def receive(self, text_data=None, bytes_data=None):
        data = text_data or bytes_data
        if data:
            data = json.loads(data)
            # 动态设置终端窗口大小
            resize = data.get('resize')
            try:
                if resize and len(resize) == 2:
                    self.ssh_channel.resize_pty(*resize)
                else:
                    self.ssh_channel.send(data['data'])  # Shell命令
            except Exception as e:
                print('接收前端终端窗口数据异常，通常是SSH通道建立异常')

    # 关闭WebSocket连接时调用
    def disconnect(self, close_code):
        try:
            self.ssh_channel.close()
        except Exception as e:
            print('关闭SSH通道异常，通常是SSH通道建立异常')



配置channels存储

docker run --name redis -d -p 6379:6379 redis:5

在settings.py配置文件添加redis配置，内容如下：

CHANNEL_LAYERS = {
    # 真实上线使用redis
    # 'default': {
    #     'BACKEND': 'channels_redis.core.RedisChannelLayer',
    #     'CONFIG': {
    #         "hosts": [('127.0.0.1', 6379)],  # 需修改redis的地址
    #     },
    # },
    # 测试阶段，放到内存中即可
    'default': {
        'BACKEND': 'channels.layers.InMemoryChannelLayer',
    },
}

总结

用户打开浏览器–》浏览器发送websocket请求给Django建立长连接–》Django与要操作的服务器建立SSH通道，实时的将收到的用户数据发送给SSH后的主机，并将主机执行的结果数据返回给浏览器。
